• Suspension Package, Standard includes 51mm twin tube shock absorbers and 33mm front stabilizer bar
• Pickup box
• Air cleaner, high-capacity

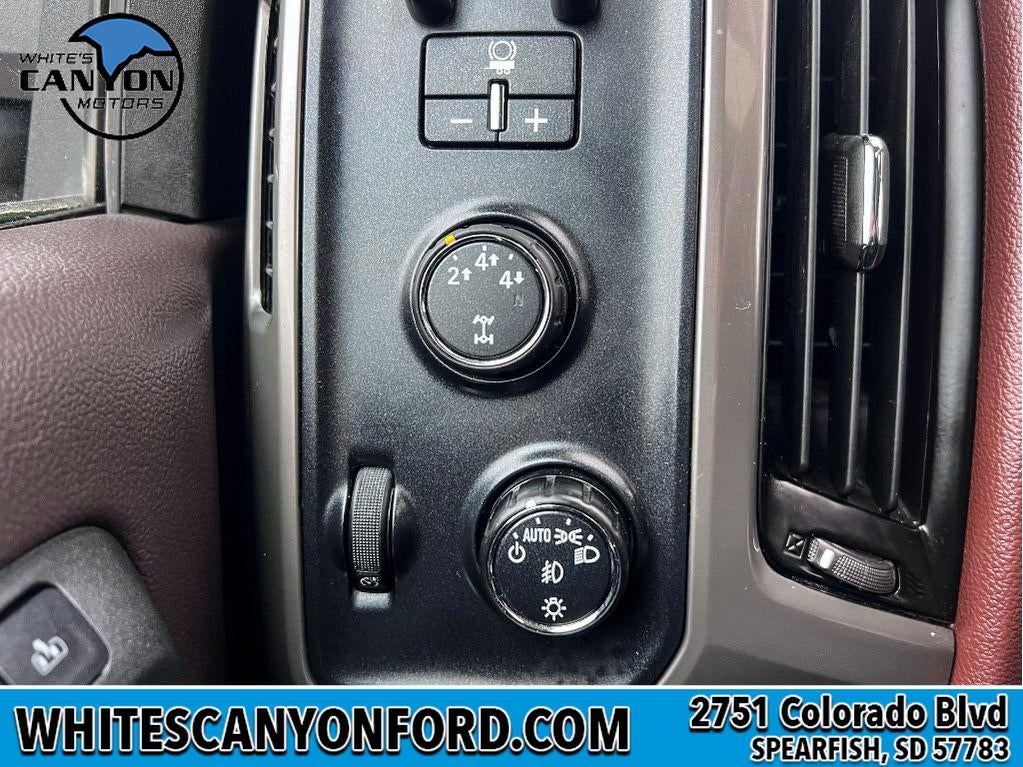

• Transfer case, electronic shift with rotary dial controls (Requires 4WD models.)
• Differential, heavy-duty locking rear
• Four wheel drive
• Trailering equipment Trailering hitch platform 2.5" with a 2.0" insert for HD, 7-wire harness with independent fused trailering circuits mated to a 7-way sealed connector to hook up parking lamps, backup lamps, right and left turn signals, an electric brake lead, battery and a ground, The trailer connector also includes the 4-way for use on trailers without brakes - park, brake/turn lamps
• Battery, heavy-duty 720 cold-cranking amps/80 Amp-hr maintenance-free with rundown protection and retained accessory power
• Alternator, 150 amps
• Trailer brake controller, integrated
• Recovery hooks, front, frame-mounted, black
• Frame, fully-boxed, hydroformed front section
• Chassis, single rear wheel
• Steering, Recirculating ball with smart flow power steering system
• Brakes, 4-wheel antilock, 4-wheel disc with DuraLife brake rotors (Requires single rear wheels.)
• Exhaust, aluminized stainless-steel muffler and tailpipe

• Wheels, 18" (45.7 cm) chromed aluminum includes 18" x 8" (45.7 cm x 20.3 cm) steel spare wheel. Spare not included with (ZW9) pickup box delete unless a spare tire is ordered. (Requires single rear wheels.)
• Tires, LT265/70R18E all-season, blackwall (Requires single rear wheels.)
• Tire, spare LT265/70R18E all-season, blackwall (Included and only available with (QWF) LT265/70R18E all-season tires or (QGM) LT265/70R18E all-terrain tires. Available to order when (ZW9) pick-up box delete is ordered.)
• Wheel, 18" x 8" (45.7 cm x 20.3 cm) full-size, steel spare Spare not included with (ZW9) pickup box delete unless a spare tire is ordered. (Requires single rear wheels. Included with (E63) pickup box. Available to order when (ZW9) pick-up box delete is ordered.)
• Wheelhouse liners, rear (Requires Crew Cab or Double Cab model. Not available with dual rear wheels. Deleted with (ZW9) pickup box delete.)
• Tire carrier lock keyed cylinder lock that utilizes same key as ignition and door (Not included when (ZW9) pickup box delete or (9J4) rear bumper delete is ordered.)
• Bumper, front, body-color
• Bumper, rear, body-color
• CornerStep, rear bumper
• LPO, Assist Steps - 6" Chromed Rectangular (dealer-installed) (May be substituted with (VXJ) or (RVS) assist steps, LPO. (VXH) is deleted when (VXJ) or (RVS) assist steps, LPO are specified when (CHX) 13,025 lbs. GVWR with dual rear wheels is ordered and requires (R8M) VXH factory installed 6" chrome tubular rectangular assist step delete.)
• Moldings, bodyside, chrome
• Grille surround, chrome
• Headlamps, halogen projector-beam
• Fog lamps, front, halogen
• Lamps, cargo area, cab mounted with switch on center switch bank
• Mirrors, outside heated power-adjustable vertical trailering, memory-equipped, upper glass, power-folding and manual extending, chrome; includes integrated turn signal indicators, consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp
• Glass, deep-tinted
• Window, power, rear sliding with rear defogger on Crew Cab or Double Cab models
• Door handles, chrome
• Tailgate and bed rail protection caps, top
• Tailgate, EZ-Lift and Lower (Deleted when (ZW9) pickup box delete is ordered.)
• Remote Locking Tailgate
• Bed Liner, Spray-on Pickup box bed liner with bowtie logo. Liner is permanently bonded to the truck bed providing a water tight seal. The textured, non-skid surface is black in color and robotically applied. Spray-on liner covers entire bed interior surface below side rails, including tailgate, front box top rail, gage hole plugs and lower tie down loops.
• Cargo ties downs (4), movable upper

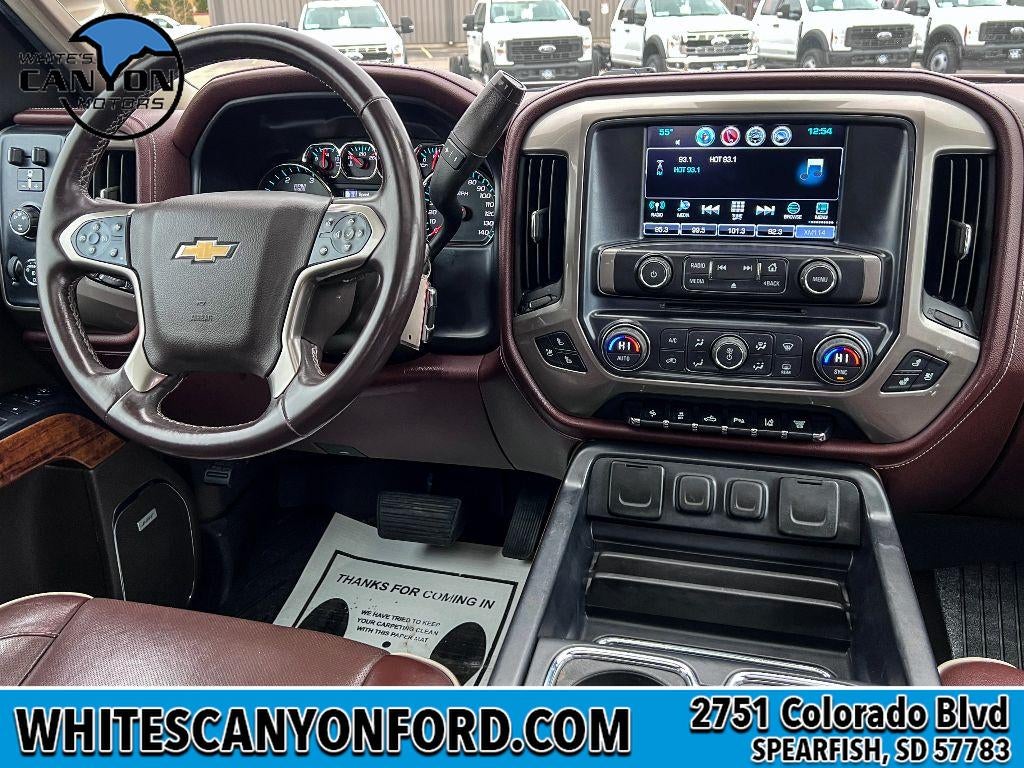

• Audio system, Chevrolet MyLink Radio with Navigation and 8" diagonal color touch-screen, AM/FM stereo with seek-and-scan and digital clock, includes Bluetooth streaming audio for music and select phones; USB ports; auxiliary jack; voice-activated technology for radio and phone; featuring Apple CarPlay capability for compatible phone.
• Single-slot CD/MP3 player (On Crew Cab model replaced by (U42) rear seat DVD/Blu-Ray Entertainment Package when (U42) is ordered.)
• OnStar with 4G LTE and built-in Wi-Fi hotspot to connect to the internet at 4G LTE speeds includes 3GB or 3 months OnStar Data Trial (whichever comes first) (Available 4G LTE Wi-Fi requires compatible mobile device, active OnStar subscription and data plan after trial.)
• SiriusXM Satellite Radio is standard on nearly all 2016 GM models. Enjoy a 3-month All Access trial subscription with over 150 channels including commercial-free music, plus sports, news and entertainment. Plus listening on the app and online is included, so you'll hear the best SiriusXM has to offer, anywhere life takes you. Welcome to the world of SiriusXM. (IMPORTANT: The SiriusXM Satellite Radio trial package is not provided on vehicles that are ordered for Fleet Daily Rental ("FDR") use. If you decide to continue service after your trial, the subscription plan you choose will automatically renew thereafter and you will be charged according to your chosen payment method at then-current rates. Fees and taxes apply. To cancel you must call us at 1-866-635-2349. See our Customer Agreement for complete terms at www.siriusxm.com. All fees and programming subject to change.)
• Radio, HD
• Bose Sound with 6 speaker system (7 speaker system including subwoofer when ordered with bucket seats).
• Bluetooth for phone personal cell phone connectivity to vehicle audio system

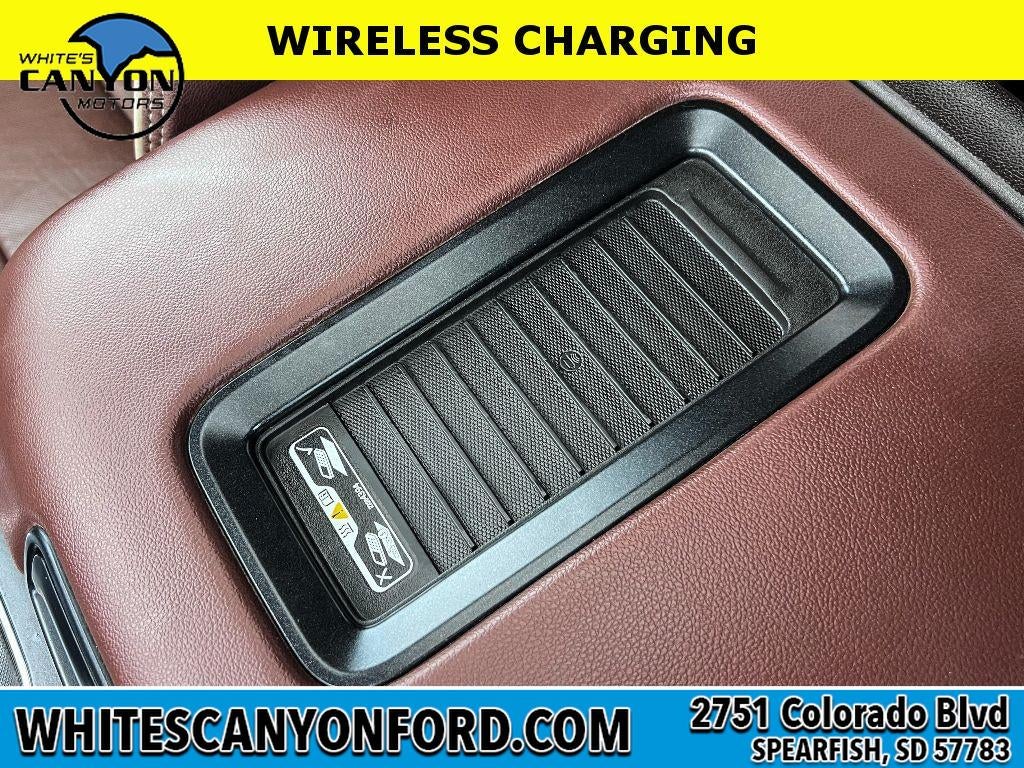

• Wireless Charging

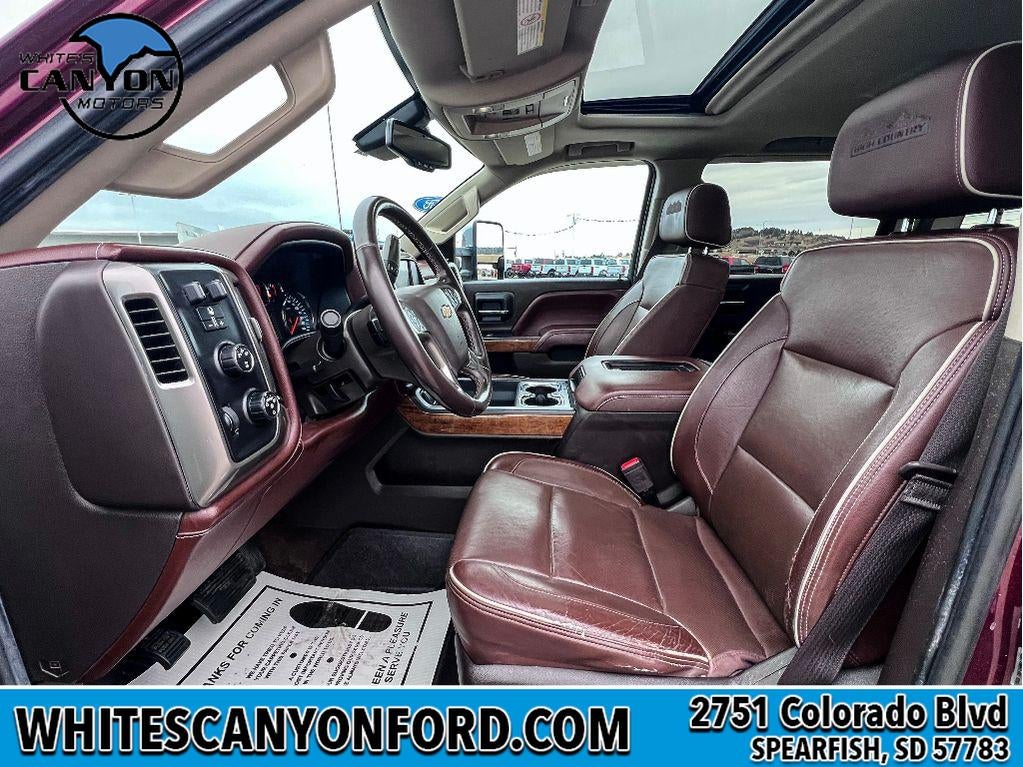

• Seats, front full-feature leather-appointed bucket. Includes 12-way power driver and front passenger seat adjuster including 4-way power lumbar, 2-position driver memory, adjustable head restraints, (D07) floor console storage pockets and (K4C) wireless charging.
• Seat trim, Perforated leather-appointed front seats

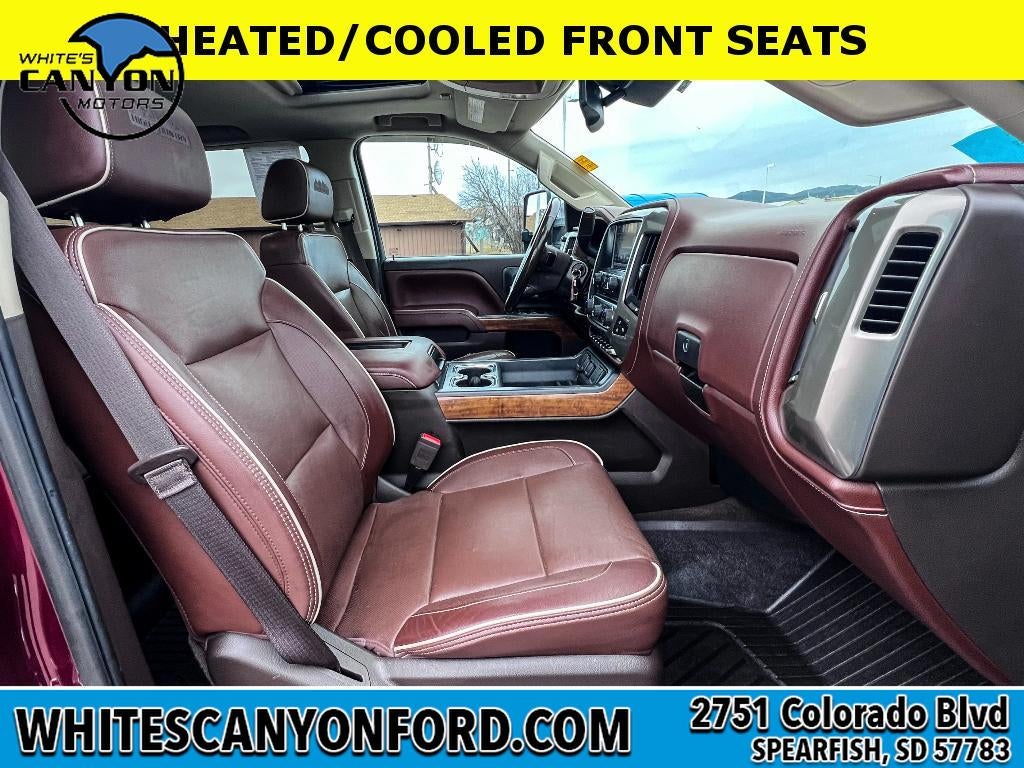

• Seating, heated and vented perforated leather-appointed front bucket (Requires (AN3) front full-feature leather-appointed bucket seats and (H3A), (H3B) or (H3C) perforated leather-appointed seat trims.)

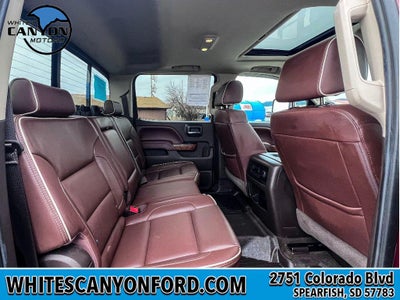

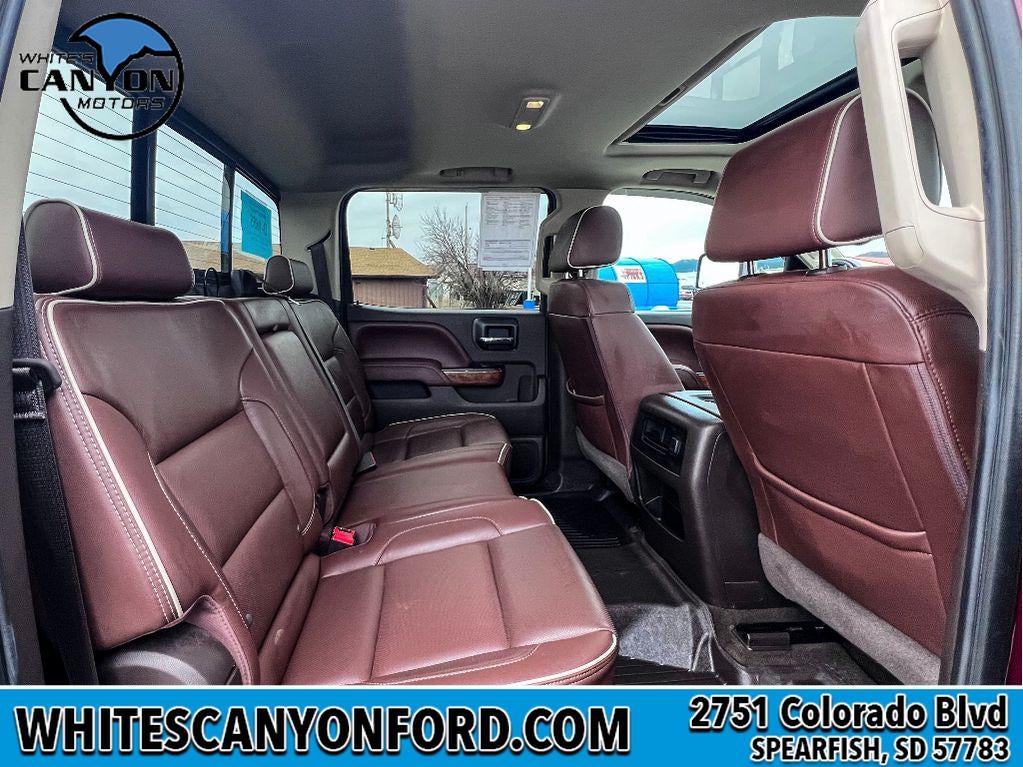

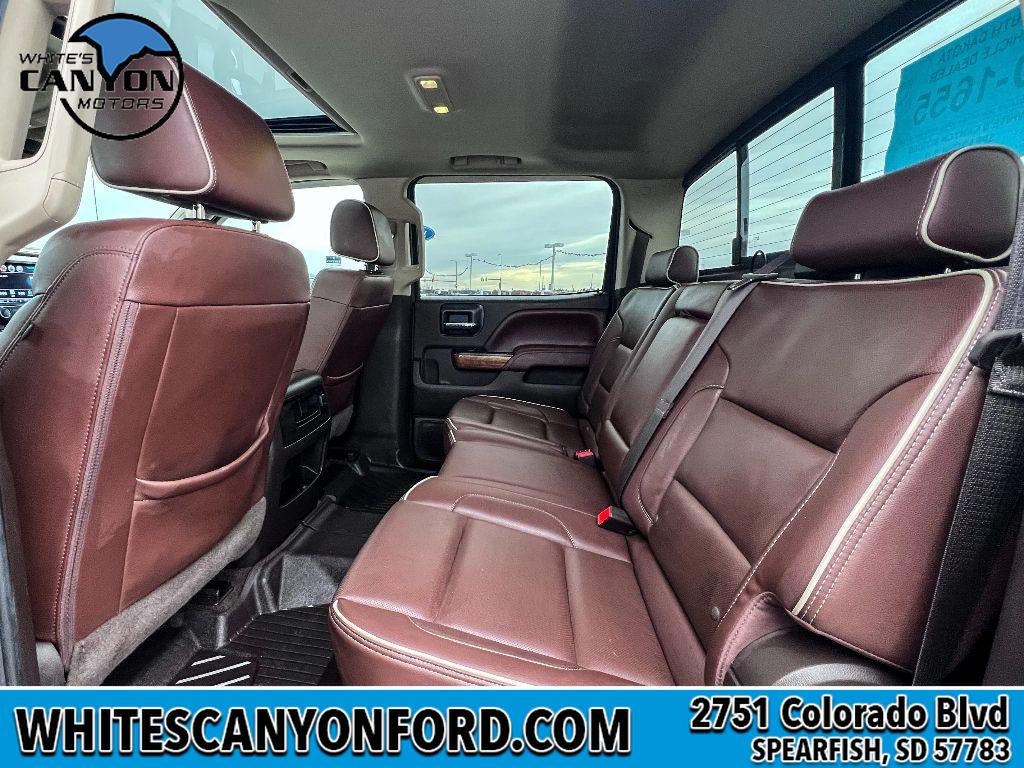

• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor)
• Console, floor mounted, reconfigurable with cup holders, cell phone storage, power cord management, hanging file holder capability and (K4C) wireless charging
• Floor covering, color-keyed carpeting with rubberized vinyl floor mats (Double Cab and Crew Cabs include second row floor mats)
• Floor mats, carpeted front and rear
• Sill plates, bright
• Steering wheel, leather-wrapped with audio and cruise controls
• Steering wheel audio controls
• Steering column, manual Tilt-Wheel and telescoping

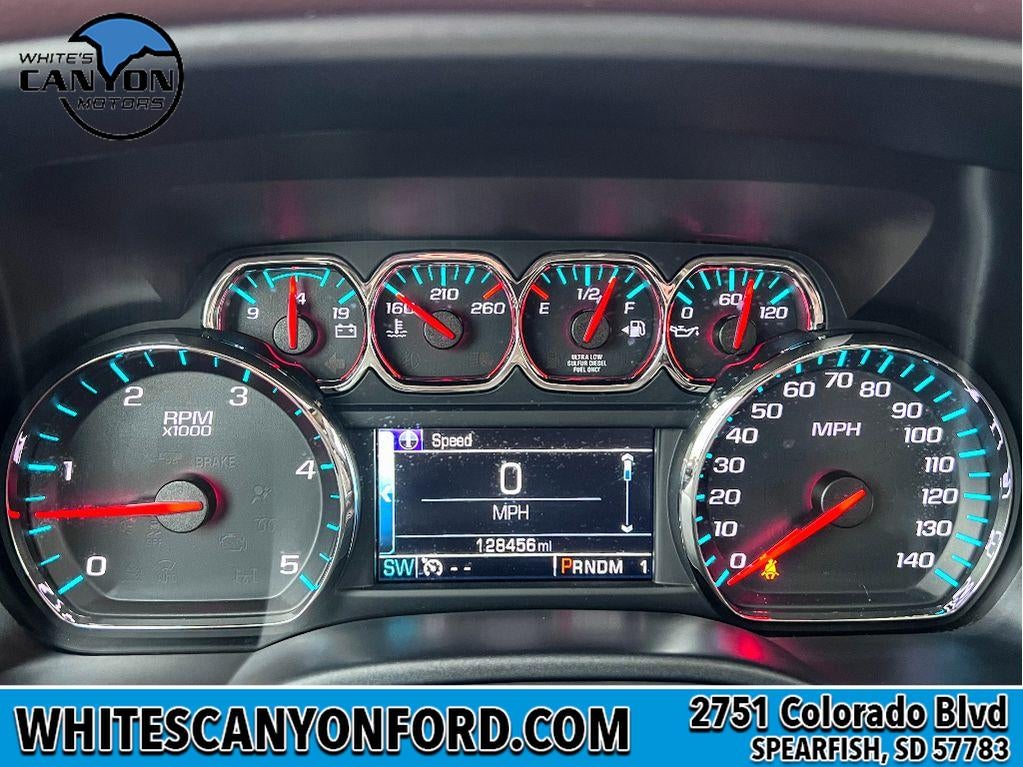

• Driver Information Center 4.2-inch diagonal color display, includes driver personalization, warning messages and vehicle information
• Windows, power with driver express up and down and express down on all other windows
• Door locks, power
• Remote vehicle starter system
• Remote Keyless Entry
• Cruise control, steering wheel-mounted
• Universal Home Remote on Crew Cab or Double Cab models (Removed when (TRW) provisions for roof mounted lamp or (VYU) Snow Plow Prep Package is ordered.)
• Theft-deterrent system, unauthorized entry
• Air conditioning, dual-zone automatic climate control. Only available on Crew Cab and Double Cab models.
• Defogger, rear-window electric
• Power outlet, 110-volt AC
• Mirror, inside rearview auto-dimming
• Visors, driver and front passenger illuminated vanity mirrors
• Assist handle, front passenger and driver on A-pillars

• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist
• Daytime Running Lamps with automatic exterior lamp control
• Air bags, single-stage frontal and thorax side-impact, driver and front passenger, and head curtain side-impact, front and rear outboard seating positions (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bags, frontal, driver and right front passenger, single stage (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• OnStar, Guidance Plan for 6 months including Automatic Crash Response, Stolen Vehicle Assistance, Roadside Assistance, Turn-by-Turn Navigation and more (trial excludes Hands-Free Calling) (Visit www.onstar.com for coverage map, details and system limitations. Services may vary by model and conditions.)
• Front and Rear Park Assist, Ultrasonic

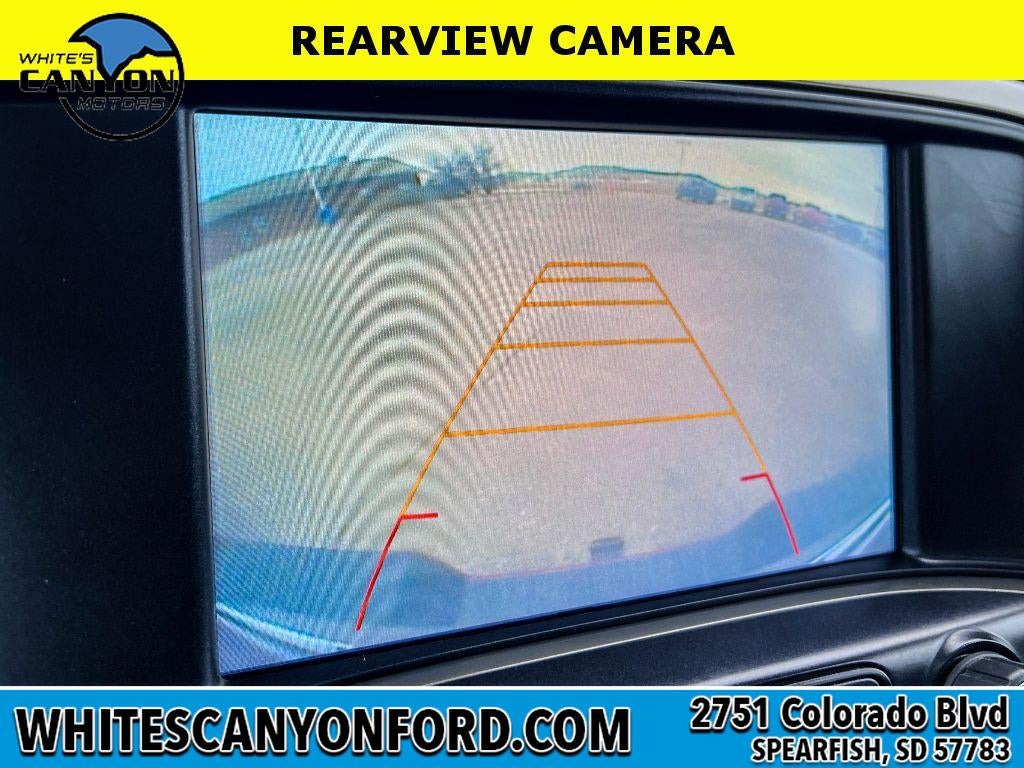

• Rear Vision Camera with dynamic guide lines (Removed when (ZW9) pickup box delete or (9J4) rear bumper delete is ordered.) (Removed when (ZW9) pickup box delete is ordered.)
• Tire Pressure Monitoring System (does not apply to spare tire) (Included and only available with (C7A) 10,000 lb. (4536 kg) GVWR.)

ENGINE, DURAMAX 6.6L TURBO DIESEL V8, B20-DIESEL COMPATIBLE

• (397 hp [296.0 kW] @ 3000 rpm
• 765 lb-ft of torque [1032.8 N-m] @ 1600 rpm) Includes (K40) exhaust brake and (K05) engine block heater.)

• Duramax Plus Package: Engine Block Heater; Leather Wrapped Heated Steering Wheel; 3.73 Rear Axle Ratio; Power Adjustable Pedals; Duramax 6.6L Turbo Diesel V8 Engine; Allison 1000 6-Speed Automatic Transmission with Overdrive
• Driver Alert Package: Forward Collision Alert; Lane Departure Warning
• Preferred Equipment Group 3LZ: EZ-Lift and Lower Tailgate; Chrome Door Handles; Rear Vision Camera with Dynamic Guide Lines; Rear 60/40 Folding Bench Seat (folds Up); Remote Vehicle Starter System; Power Sliding Rear Window with Defogger; Electric Rear-Window Defogger; Unauthorized Entry Theft-Deterrent System; Chevrolet MyLink Radio with Navigation; 4.2" Diagonal Color Display Driver Info Center; Trailering Equipment; 110-Volt AC Power Outlet; Front Halogen Fog Lamps; Remote Locking Tailgate; 150 Amps Alternator; Wireless Charging; Steering Wheel Audio Controls; Universal Home Remote; Color-Keyed Carpeting Floor Covering; Power Windows; OnStar Guidance Plan For 6 Months; Remote Keyless Entry; Electronic Shift Transfer Case; Single-Slot CD/MP3 Player; Deep-Tinted Glass; Chrome Power-Adjustable Heated Outside Mirrors; Dual-Zone Automatic Climate Control; Spray-On Pickup Box Bed Liner with Bowtie Logo; SiriusXM Satellite Radio; Bright Sill Plates; High Country; Digital Steering Assist; Leather-Wrapped Steering Wheel; Manual Tilt-Wheel/telescoping Steering Column; Driver and Front Passenger Visors; OnStar with 4G LTE; Single-Stage Driver and Front Passenger Air Bags; Auto-Dimming Inside Rearview Mirror; Rear Wheelhouse Liners; Chrome Bodyside Moldings

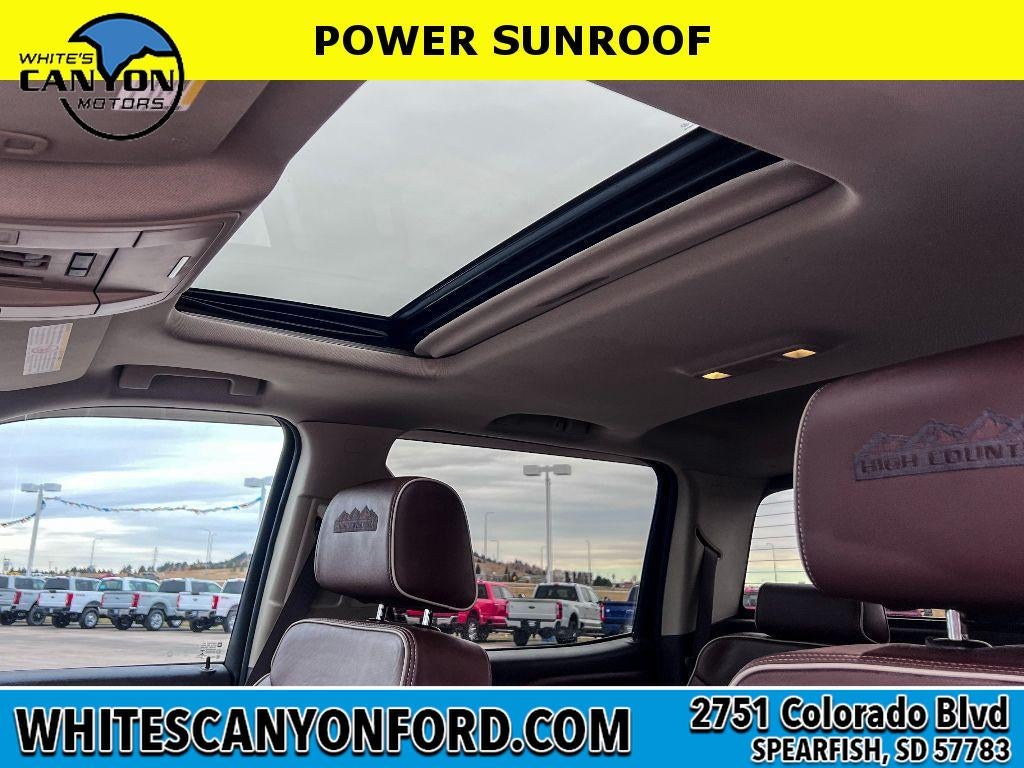

• Power Sunroof
• LT265/70R18E AT BW Tires
• Front and Rear All-Weather Floor Mats
• LED Cargo Box Lighting
• 3.73 Rear Axle Ratio
• 1-Piece Radiator Grille and Front Bumper Opening Cover
• Trailering Wiring Provisions
• Mobile hotspot internet access
• Rear mounted camera
• Brake assist system
• Cruise control with steering wheel mounted controls
• Ventilated driver and front passenger seats

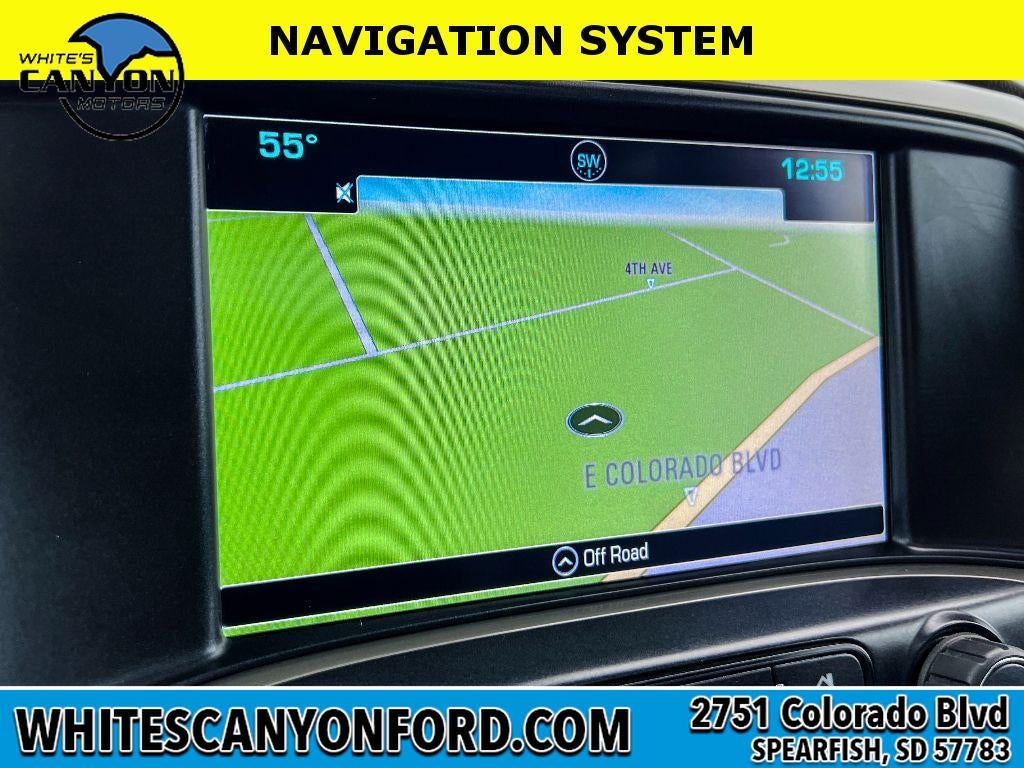

• Integrated navigation system with voice activation
• Keyfob remote start

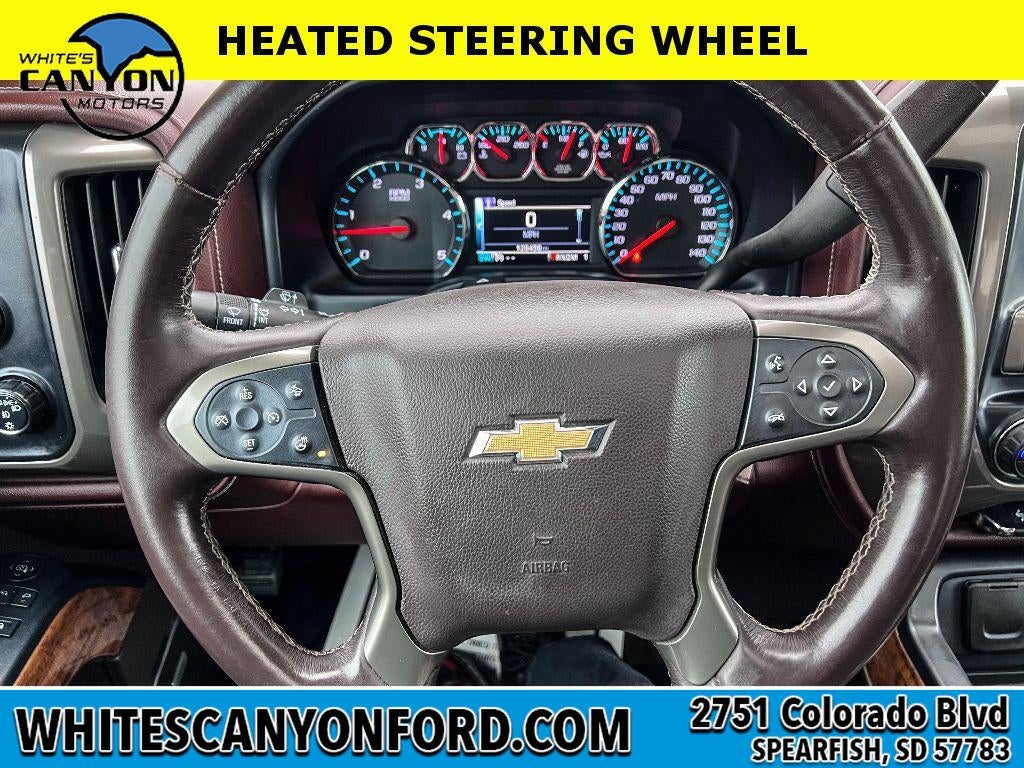

• Heated steering wheel
• Heated driver and front passenger seats
• Leather front seat upholstery
• Primary monitor touchscreen
• First-row sliding and tilting glass sunroof with express open activation sunshade
• Driver seat power reclining
• lumbar support
• cushion tilt
• fore/aft control and height adjustable control
• Part-time 4WD
• Duramax 6.6L V-8 diesel direct injection
• intercooled turbo
• diesel
• engine with 397HP
• Duramax 6.6L V-8
• Front wireless smart device charging
• Smart device remote start
• Mechanical
• OnStar Guidance vehicle tracker with vehicle slowdown
• Wireless audio streaming
• Smart device mirroring
• Forward collision warning
• Dual-zone front climate control
• Immobilizer
• Bose speakers
• Vehicle integrated emergency SOS system
• Handsfree wireless device connectivity
• Trailer brake controller
• Trailer sway control
• Chevrolet MyLink external memory control
• Pandora internet radio capability
• 5 USB ports
• Electronic stability control system with anti-roll
• Hill start assist
• Automatic climate control
• UltraSonic front and rear parking sensors
• Front fog lights
• Leather and metal-look steering wheel
• Easy lift tailgate
• Easy lower tailgate
• Manual rear child safety door locks
• Heated driver and passenger side door mirrors
• Power folding door mirrors
• Driver selectable steering effort
• Manual tilting steering wheel
• Manual telescopic steering wheel
• Metallic paint
• Manual extendable trailer mirrors
• Power adjustable pedals

• Electrical
• Cold Cranking Amps @ 0° F (Primary): - TBD -
• Maximum Alternator Capacity (amps): 150
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 5600
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 7050
• Curb Weight - Front (lbs): - TBD -
• Curb Weight - Rear (lbs): - TBD -
• Gross Vehicle Weight Rating Cap (lbs): 10000
• Gross Combined Wt Rating (lbs): 24500
• Gross Combined Wt Rating (lbs): 20500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 17100
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 13900
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1710
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1390
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 17100
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 13900
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 4275
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3475
• Maximum Trailering Capacity (lbs): 17100
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 5600
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 7050
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 5600
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 7050
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 51.00
• Shock Absorber Diameter - Rear (mm): 51.00
• Stabilizer Bar Diameter - Front (in): 1.31
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): - TBD -
• Rear Brake Rotor Diam x Thickness (in): - TBD -
• Tires
• Front Tire Order Code: QWF
• Rear Tire Order Code: QWF
• Front Tire Size: LT265/70R18E
• Rear Tire Size: LT265/70R18E
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 18 x 8.0
• Rear Wheel Size (in): 18 x 8.0
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Steering
• Steering Type: Pwr Recirculating Ball
• Steering Ratio (:1), On Center: 16.00
• Steering Ratio (:1), At Lock: N/A
• Turning Diameter - Curb to Curb (ft): 51.8
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36.0
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 153.70
• Length, Overall w/o rear bumper (in): 239.5
• Width, Max w/o mirrors (in): 80.51
• Height, Overall (in): 78.15
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 151.10
• Cab to Axle (in): 41.26
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 39.33
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): 8.42
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.86
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 51.02
• Cargo Box (Area) Height (in): 21.22
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 61.0
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 42.80
• Front Leg Room (in): 45.27
• Front Shoulder Room (in): 64.84
• Front Hip Room (in): 60.73
• Second Head Room (in): 40.50
• Second Leg Room (in): 40.93
• Second Shoulder Room (in): 64.33
• Second Hip Room (in): 60.24
• Summary

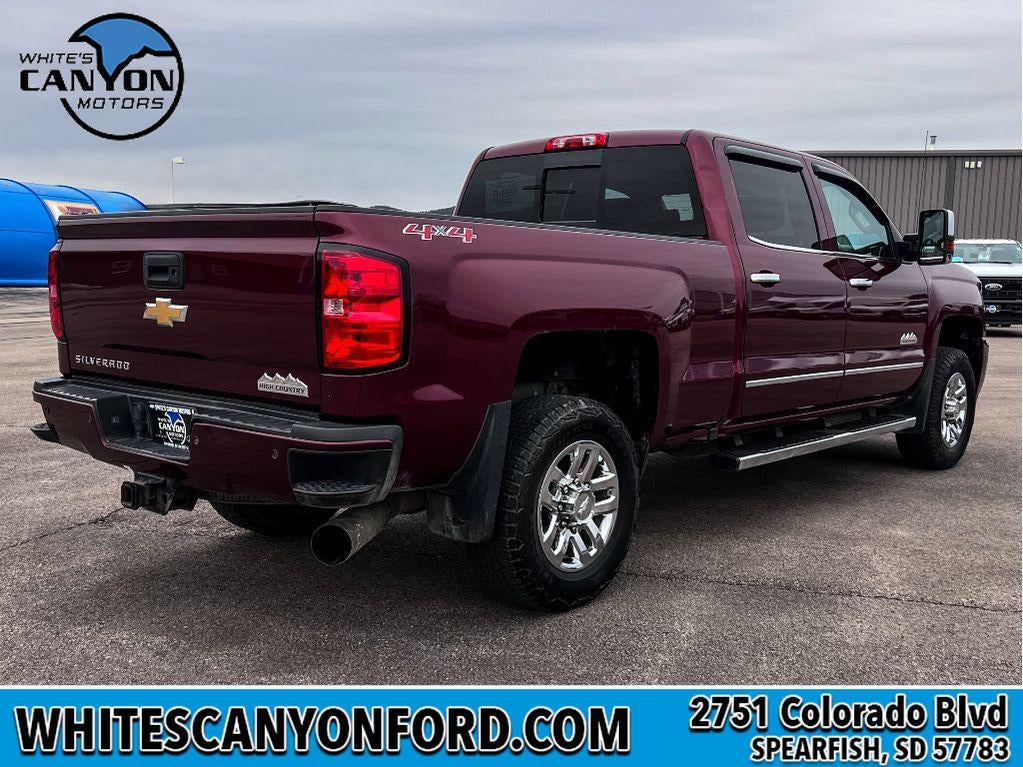

• Vehicle Name: Chevrolet Silverado 3500HD
• Body Style: Crew Cab Pickup
• Body Code: E63
